Tru-Seal Attic Hatch – The Only Hatch That Preserves Your Vapour Barrier.

Maintains your ceiling’s vapour barrier, matches your attic’s insulation, and prevents unwanted air movement. Available in standard sizes or custom options for a perfect fit.

Tru-Seal Attic Hatch Features

Tru-Seal hatches are built different for better results. Rather than using a heavy insulated door that sits on a gasket and pushes into the attic to gain access, Tru-Seal is fastened on from underneath. This allows us to properly insulate the hatch and completely eliminates the risk of air flow into the attic.

Rubber Gasket Seal ensuring long-term air seal
High-Quality Rubber Gasket: Maintains a reliable air seal for years of use, even as it is compressed.
Fully insulated attic hatch cavity
Friction Fit Batt Insulation: Allows the access cavity to reach the same R-Value as the rest of the attic, improving energy performance.
Continuous vapour barrier preventing air leakage
Continuous Vapour Barrier: Tru-Seal maintains the vapour barrier to prevent air flow and moisture migration into the attic space.

Conventional Attic Hatch Flaws

Traditional attic hatches often create weak points in your insulation envelope — allowing air leakage, condensation, and thermal bridging that compromise your home’s efficiency.

Compressed Weather Stripping

Standard weather stripping compresses within a year or two, leading to poor seals and air gaps that allow unwanted airflow between conditioned and attic spaces.

Conventional attic hatch with worn weather stripping

Uninsulated Door Gap

The half-inch uninsulated space around the door — designed to allow the hatch to push into the attic — creates a cold bridge and allows air to meet at the faulty weather stripping.

Uninsulated air gaps around attic hatch door

Thermal Bridging

Conventional hatch designs create a direct conductive path for heat transfer — allowing indoor warmth to escape and cold air to infiltrate, lowering overall energy performance.

Thermal bridge in conventional attic hatch

Why Choose Tru-Seal?

Purpose-built for performance and precision. Tru-Seal attic hatches are crafted to meet today’s building standards while making installation easier and results cleaner.

STANDARD OR CUSTOM FIT

Tru-Seal’s standard rough opening is 22½” × 26”, but custom sizes are also available with fast turnaround.

AIRTIGHT TO PREVENT HEAT LOSS

Fastening from underneath with a premium gasket ensures zero heat loss through the hatch.

SIMPLE TO INSTALL

Only a drill, batt insulation, and silicone are needed. Install in as little as 15 minutes.

PLACE THE HATCH ANYWHERE

By being fastened on from underneath, we are no longer restricted to attic height requirements as we are with the old wooden box hatches. As it is airtight, you can even install it in the laundry room!

CLEAN, MODERN APPEARANCE

Standard 2" PVC Brickmould frame, with an optional Shaker Panel frame available.

FLAME RESISTANT PANEL

PVC panels are flame resistant up to 10 mm thick—ideal for multi-unit applications.

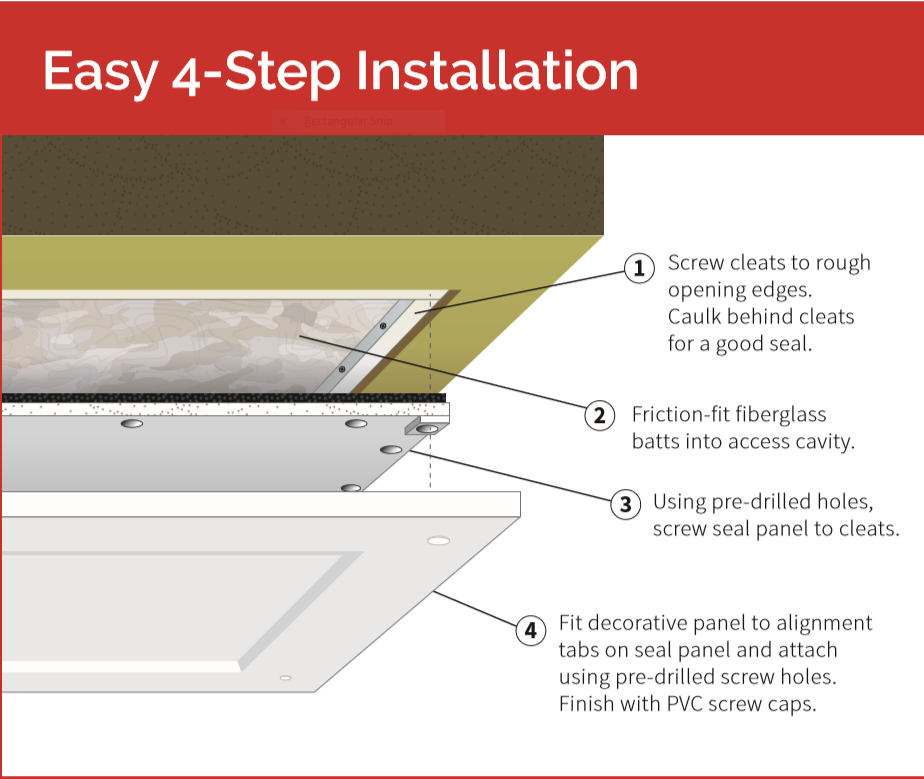

The 4 Steps to achieving a proper performing hatch in your home:

Install cleats using silicone and supplied screws

Put the friction fit batt insulation in the cavity. We recommend R40

Install the PVC Seal Door Panel. This can be put on right after drywall and can remain on for the rest of the finishing as it will be covered.

Install the Decorative Finish Door. This is purely decorative and hides any scuffs that the Seal Door got during the finishing stages.

Installation Requirements

Simple steps for a clean, secure install and long-lasting performance.

Silicone Behind Cleats

Tru-Seal supplies PVC Cleats that are installed in the hatch cavity. (See photo). To properly ensure the hatch is installed air tight, please silicone behind the cleats when installing.

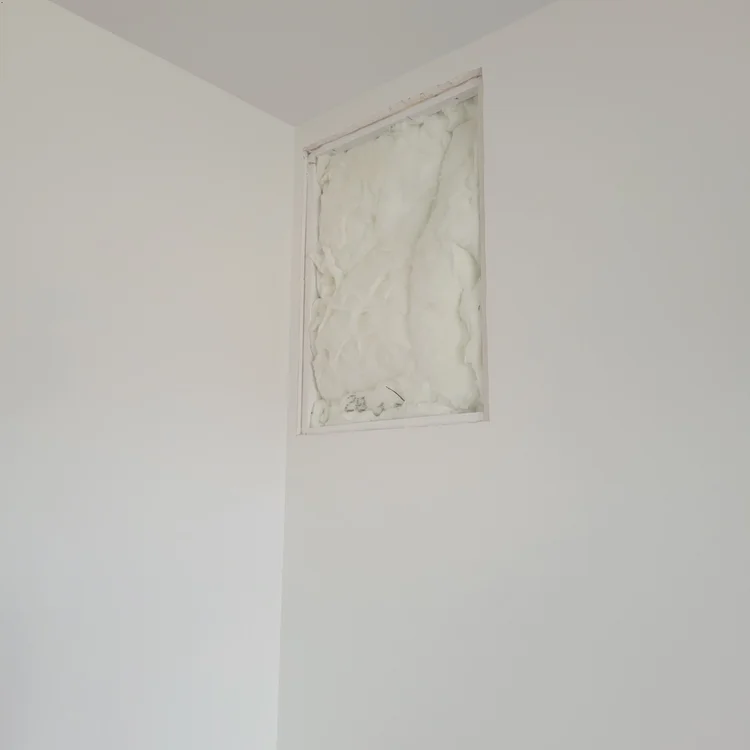

Friction Fit Batt Insulation

Because Tru-Seal is fastened on from underneath, the hatch can now be completely filled with friction fit batt insulation to the same R-Value as the rest of the attic! (Not Included)

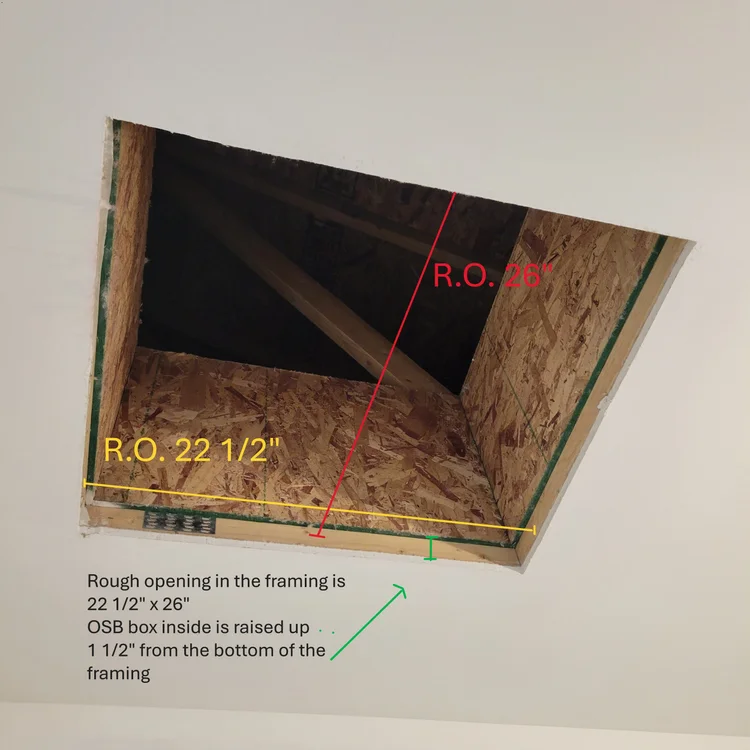

R.O. Size Requirement

Tru-Seal is available in the standard R.O. size 22 1/2" x 26". Please contact us to order your custom size at no extra cost with a quick shipping turnaround to ensure you receive a hatch that works well for you!

Become A Distributor
Attic hatch/attic access with water damage and mold around the edges.

Do you have a bad attic hatch in your home that you need to replace?

You are not alone!

We regularly replace faulty attic hatches that have bad ceiling water damage, mold in the hatch, swelling and warping.

If you are local to Saskatoon, we offer a replacement service that includes us removing your old hatch, making any necessary repairs and installing a custom Tru-Seal that fits in your existing opening. Please contact us to schedule this in!

If you are across Canada, please contact us and include a photo of your existing hatch and we will get you a custom hatch to repair your faulty one right away!

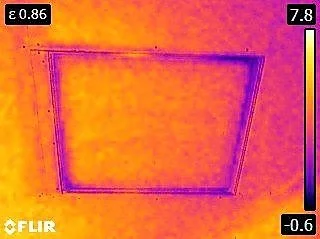

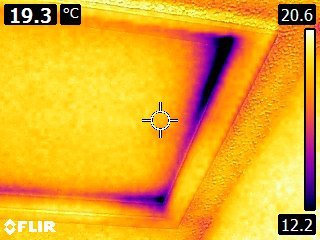

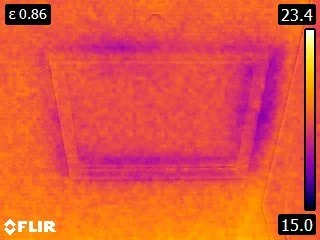

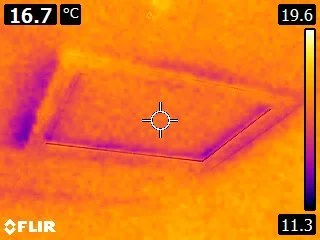

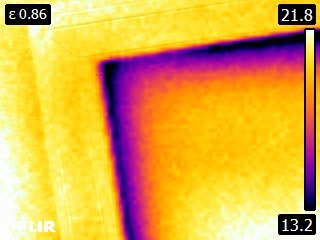

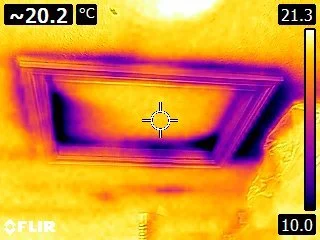

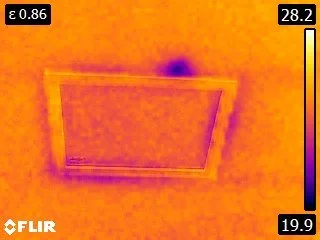

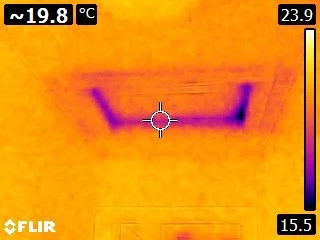

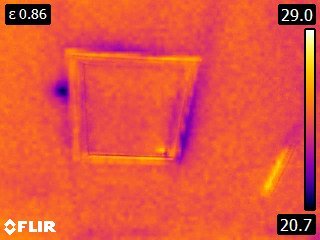

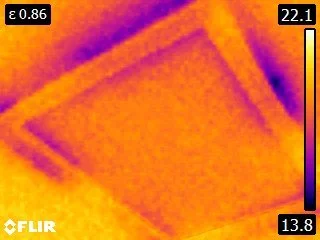

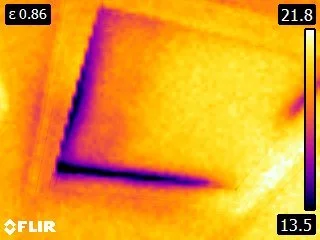

Conventional hatches (The purple shows the cold air from the attic )

Infrared image of a ceiling vent or air vent, showing temperature variations with the surrounding ceiling area.
Infrared thermal image showing a ceiling vent with cooler temperatures inside, indicated by purple and blue hues, and warmer surrounding areas in orange and yellow.
Thermal image of a ceiling corner showing heat loss, with cooler (purple and blue) areas indicating temperature differences around the window frame.
Infrared thermal image of a ceiling with beams showing temperature variations.
Thermal image of a ceiling or wall opening, showing heat variation with warmer areas in orange and cooler in purple.
Thermal image of a window with heat leakage around the edges.
Thermal image showing a wall and a door or window frame with heat variations; warmer areas are yellow and orange, cooler areas are purple and blue.
Thermal image of a ceiling with a vent or opening, showing temperature differences, with the coolest area at 11.6°C and the warmest at 19.9°C.
Thermal image of ceiling with a rectangular vent or opening, showing temperature variations from approximately 15.5°C to 23.9°C.
Thermal image of a ceiling corner showing temperature variations, with the warmest area at 19.3°C and the coolest at 12.2°C.
Thermal image of a square window or door panel with varying heat signatures, showing hottest area in orange and yellow, cooler edges in purple and blue.
Infrared thermal image of a ceiling vent showing heat loss through the vent cover.

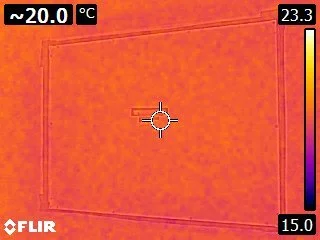

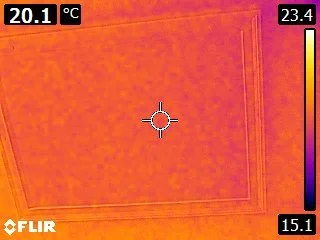

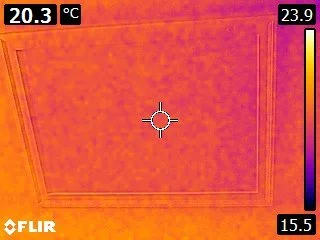

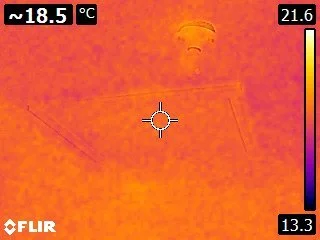

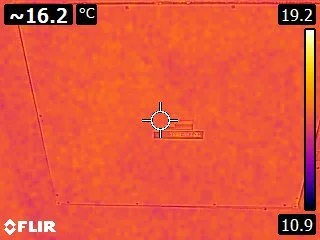

Tru-Seal hatch

The image demonstrates Tru-Seal’s superior seal integrity, maintaining consistent thermal control and virtually no detectable heat escape.

Infrared thermal image of a roof showing temperature variations, with the coldest point at 15.5°C and the warmest at 23.9°C.
Thermal image of a surface showing temperature variation, with colors ranging from orange to purple, indicating different heat levels.
Infrared thermal image of a rectangular surface showing temperature variations from approximately 15°C to 23.3°C, with a higher temperature at the center.
Infrared temperature image showing a small object, possibly a boat or ship, with temperature readings around 16.2°C to 18.7°C.
Infrared thermal image showing a flat surface with temperature readings of approximately 15.7°C at the center and 10.7°C at the lower left corner, with a maximum of 19.0°C at the upper right corner.
Infrared thermal image showing temperature variation on a flat surface with a center point, range from 6.9°C to 15.2°C, predominantly orange and purple colors.
Thermal image showing a surface with temperatures ranging from approximately 29.7°C to 38.0°C, indicating heat variations on the surface.
Infrared thermal image showing a mostly uniform surface with a temperature of approximately 16.2°C to 19.2°C, and a hotspot around 19.2°C.
Thermal image of a room corner showing temperature differences, with ceiling area around 21.2°C, wall near 22.6°C, and a cold spot at 14.2°C.
Thermal image showing an area with temperatures ranging from approximately 18.5°C to 26.8°C, with warmer regions in orange and cooler regions in purple.
Thermal image of a wall with temperature readings of 20.3°C at the top left and 23.9°C at the top right.
Infrared thermal image showing a surface with temperature readings, ranging from 11.5°C to 19.8°C, with the hottest area near the center.

Check out this quick installation video of Tru-Seal Attic Hatch.

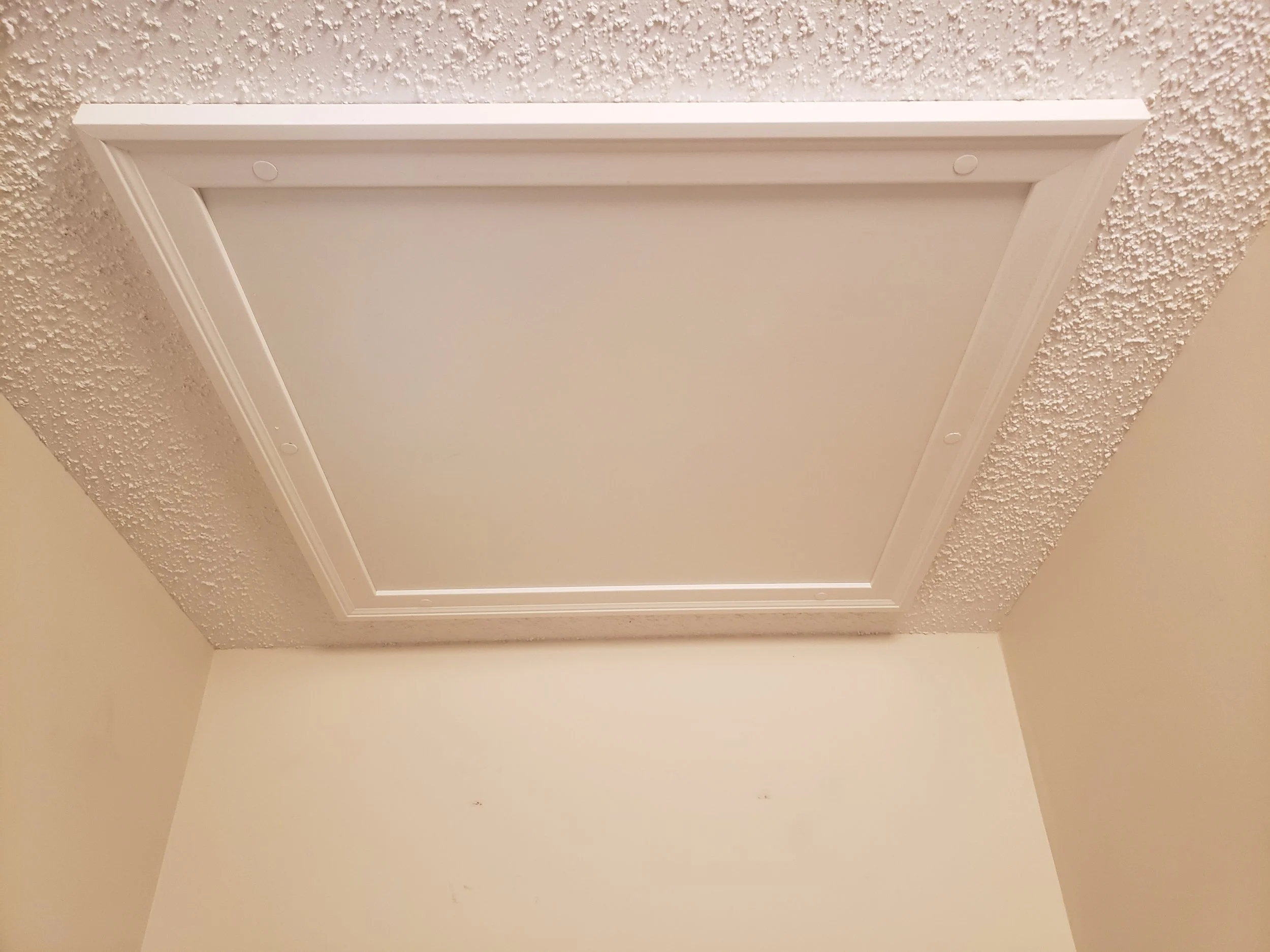

The Tru-Seal Attic Hatch

Designed and manufactured in Canada, the Tru-Seal Attic Hatch provides an airtight, and maintenance-free access solution. Each hatch is made from durable PVC and includes a pre-mounted gasket seal to ensure long-term performance and energy efficiency.

  • Standard R.O.: 22 ½″ × 26″

  • Custom Sizes: Cut to your exact rough opening upon request

  • Finish: Clean white PVC surface

  • Installation: Pre-assembled

All units are built to order. For larger quantities, commercial applications, or dealer inquiries, please contact us directly for a quote.
